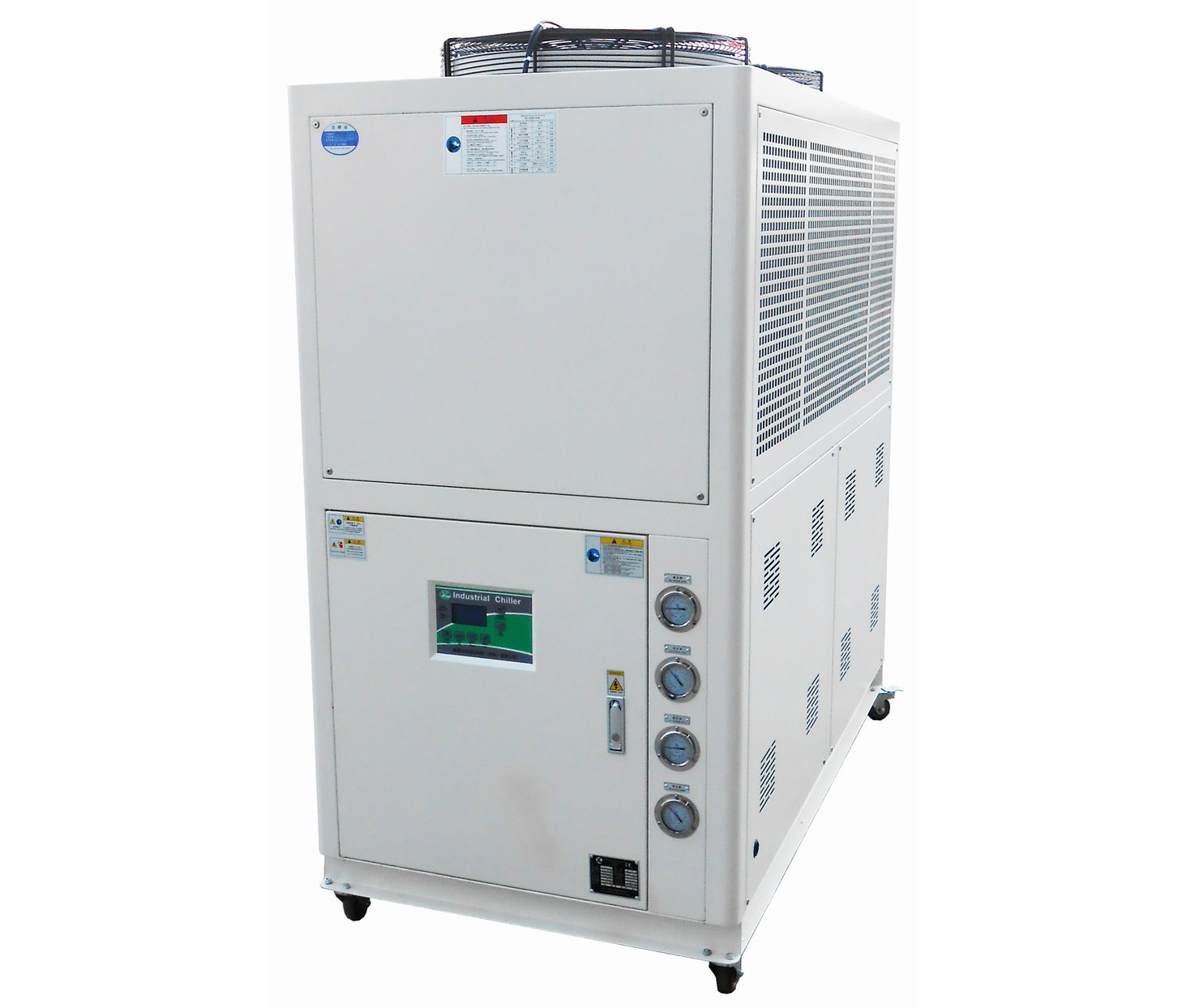

Chiller

The air-cooled chiller adopts high-performance compressor imported from Europe and the United States, with high EER value, low noise and stable operation.
It is easy to install and easy to move, and is suitable for the lack of water source without installation of water towers.
Low noise fan motor, good cooling and condensation effect, stable throttling mechanism, excellent anti-rust treatment.

Description
Inquiry

Product summary: The air-cooled chiller adopts high-performance compressor imported from Europe and the United States, with high EER value, low noise and stable operation.

It is easy to install and easy to move, and is suitable for the lack of water source without installation of water towers.

Low noise fan motor, good cooling and condensation effect, stable throttling mechanism, excellent anti-rust treatment.

Product Introduction

1. Introduction of air-cooled chiller:

◆ The group protection function is complete, and it is equipped with reverse phase loss, high and low pressure, thermal overload, low liquid level, anti-freezing guarantee, etc.

◆ The air-cooled chiller adopts a high-strength integral welded frame;

◆ Adopt imported brand compressors from Europe, America and Japan;

◆ The water tank and water pipeline are made of stainless steel SUS304;

◆ Refrigeration valves are made of Danfoss, Emerson, Poland and other well-known brands;

◆ The electrical components adopt ABB, Siemens, Schneider and other well-known brands;

◆ Standard remote on/off interface and integrated fault transmission interface, optional Rs485 and other communication functions;

◆ The control mode adopts microcomputer automatic control or PLC control;

◆ Refrigerant optional R22, R407C, R404A, R134A, R410A, etc.

◆ The evaporator can be selected in different types, such as stainless steel plate type, shell and tube type, coil type, acid and alkali resistant and anti-corrosion type;

Air-cooled chiller parameter table：

参数Parameter 型号Model			SY-10AD	SY-12AD	SY-15AD	SY-20AD	SY-25AD	SY-30AT	SY-40AF	SY-50AF	SY-60AG
参数Parameter 型号Model			SY-10AD	SY-12AD	SY-15AD	SY-20AD	SY-25AD	SY-30AT	SY-40AF	SY-50AF	SY-60AG
制冷量	KW50HZ		28.01	33.79	44.15	59.08	71.72	87.2	113.58	135.49	181.68
Cooling CapDMity	Kcal/h 50HZ		24089	29059	37965	50805	61683	74992	97675	116521	156249
总输入功率 total Input	KW		11	13.3	17	22.8	27.7	33.7	42.8	51.1	68.8
最大运行电流	A		26.7	32.3	41.3	55.4	63.1	76.8	97.5	116.5	143.1
Maximum Running Current	A		26.7	32.3	41.3	55.4	63.1	76.8	97.5	116.5	143.1
电源 Power Supply			3N-380V 50HZ
制冷量	名称 Name		R22
Refrigerant	充注量Charge	Kg	4.3×2	5×2	6.5×2	8.5×2	10.5×2	8.3×3	8.5×4	10.5×4	8.5×6
	控制方式 Control Type		毛细管	外平衡力热力膨胀阀 External Thermostatic Expansion Valve
	控制方式 Control Type		Capillary Tube	外平衡力热力膨胀阀 External Thermostatic Expansion Valve
压缩机	类型 Type		全封闭涡旋式或活塞式 Hermetic Scroll or Piston
Compressor	功率 Motor	KW	3.75×2	4.5×2	5.5×2	7.5×2	9.4×2	7.5×3	7.5×4	9×4	7.5×6
冷却风量Air Flow		m³/	10000	12000	15000	20000	25000	30000	40000	48000	66000
冷冻水	水量 Row	m³/h	4.82	5.81	7.6	10.16	12.34	15	19.53	23.3	30.52
Chilled Water	水箱 Tank	m³	0.188	0.188	0.285	0.285	0.405	0.405	0.61	0.61	7
	进出水管径 In/Out Pipe Size		G2B	G2"	G2"	G2"	G2-1/2"	G2-1/2"	G3"	G3"	G3-1/2"
水泵	功率 Motor	KW	1.5	1.5	1.5	2.2	2.2	4	4	4	4
Water Pump	压力 Pressure	Kpa	205	205	205	220	220	250	250	250	250
外形尺寸	长 Length	MM	1478	1600	1680	1955	2080	2400	2250	2700	3600
Size	宽 Width	MM	710	800	890	940	1000	1100	1550	1620	1800
	高 Height	MM	1545	1710	1710	1960	1950	1950	1820	1950	1900
重量 Weight		Kg	350	370	520	590	790	880	1100	1280	1420

Remark:

1. The nominal refrigeration is based on the ice water inlet temperature of 15 °C, the outlet temperature of 10 °C, and the ambient temperature of 35 °C.

2. If the catalog specifications are subject to change, we will not be notified.

3. Product features of air-cooled chiller:

1. Easy installation: easy to install, easy to move, suitable for the lack of water source without installation of water towers.

2. Low noise: low noise fan motor, good cooling and condensation effect, stable throttling mechanism, excellent anti-rust treatment.

3. Imported compressor: using high-performance compressor imported from Europe and the United States, with high EER value, low noise and stable operation.

4. Smooth operation: ergonomic panel, fully automatic control, equipped with precision electric temperature controller, can run smoothly for a long time.

5. High-efficiency heat exchanger: The use of high-efficiency heat exchanger has the advantages of less cooling loss, easy oil return, and no freezing and cracking of heat transfer tubes.

6. Compressor imported from Japan and the United States: high-performance compressor imported from Japan and the United States, with high EER value, low noise and stable operation.

Fourth, the application field of air-cooled chiller:

Injection molding, blistering, blow molding, electroplating electrophoresis, vacuum coating, medicine, chemical industry, environmental protection water treatment (ozone generator), ultrasonic cleaning, cement mixing plant, hardware industry, electronics industry, hydraulic casting, rollers, papermaking, food industry, bleaching and dyeing industry, aquaculture industry, sauna hot bath, central air conditioning, central hot water and other industries that have a demand for temperature.

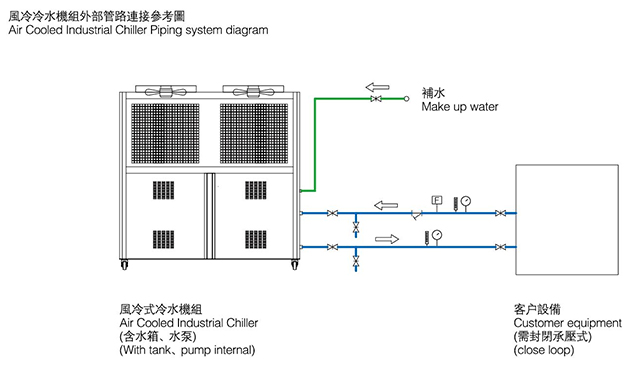

5. Flow chart of air-cooled chiller installation pipeline:
