I. Overview

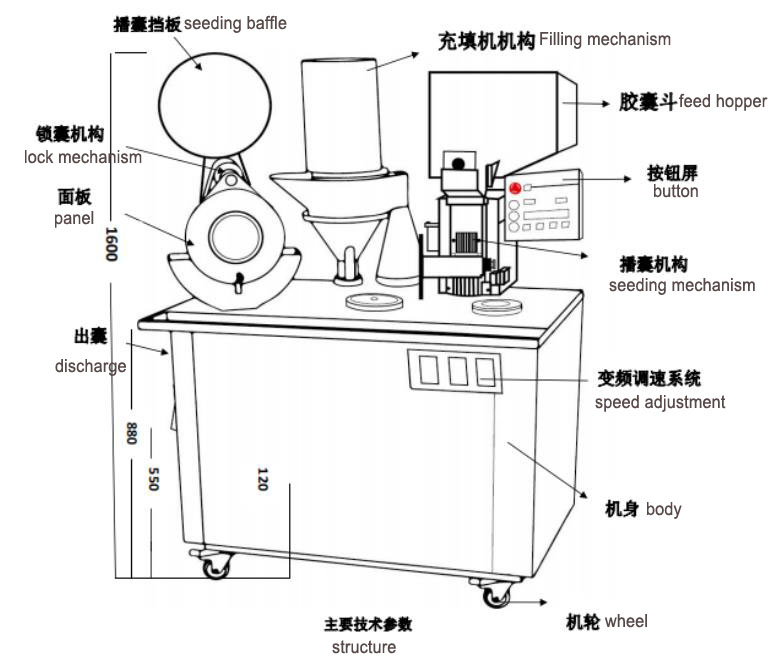

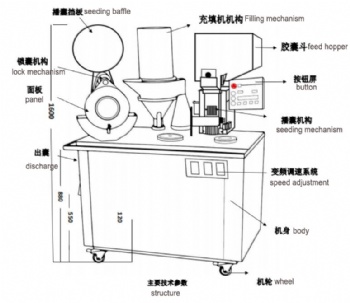

The new - type capsule filling machine is a novel pharmaceutical machine. It features a novel structure and an aesthetic appearance. It is controlled jointly by electrical and pneumatic systems, equipped with an electronic automatic counting device and a speed - regulating device. It can perform actions such as capsule positioning, separation, filling, and locking respectively, replacing manual filling, reducing labor intensity, improving production efficiency. The filling dosage is accurate, meeting the requirements of pharmaceutical hygiene. This machine is composed of components such as the capsule - feeding, turning, and separating mechanism, the material - filling mechanism, the locking mechanism, the variable - frequency speed - regulating mechanism, the pneumatic control and electrical control systems, the protection device, as well as accessories like the vacuum pump and air pump. Both domestic and imported machine - made capsules are applicable, and the qualified rate of finished products reaches over 97%.

II. Main Technical Parameters:

1. Productivity: 10,000 - 25,000 capsules per hour

2. Applicable Capsules: 00#,0#, 1#, 2#, 3#, 4# machine - made standard capsules

3. Filling Dosage Forms: Powders and small granules without stickiness and humidity

4. Total Power: 2.12KW

5. Air Pressure: 0.03m³/min, 0.7Mpa

6. Vacuum Pump: Air - extraction rate 40m³/h

7. Overall Dimensions of the Machine Body (Length × Width × Height): 1130X700X1600 (cm³)

8. Total Weight: Net weight 400kg, gross weight 500kg

9. Dimensions of the Wooden Box Packaging (Length × Width × Height): 1650X720X1700 (cm³)
