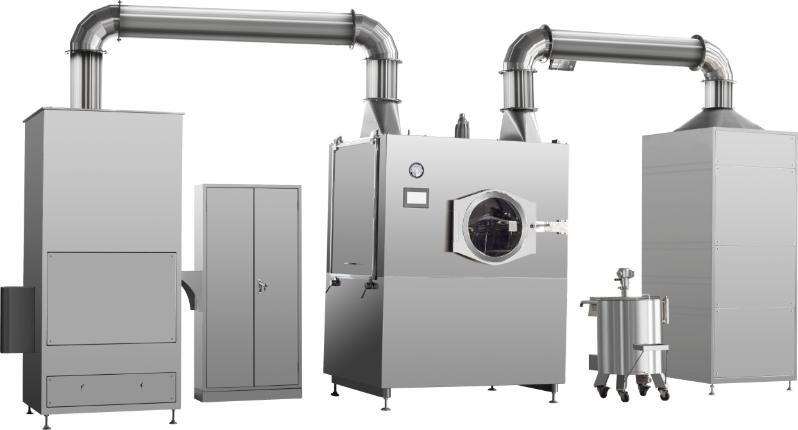

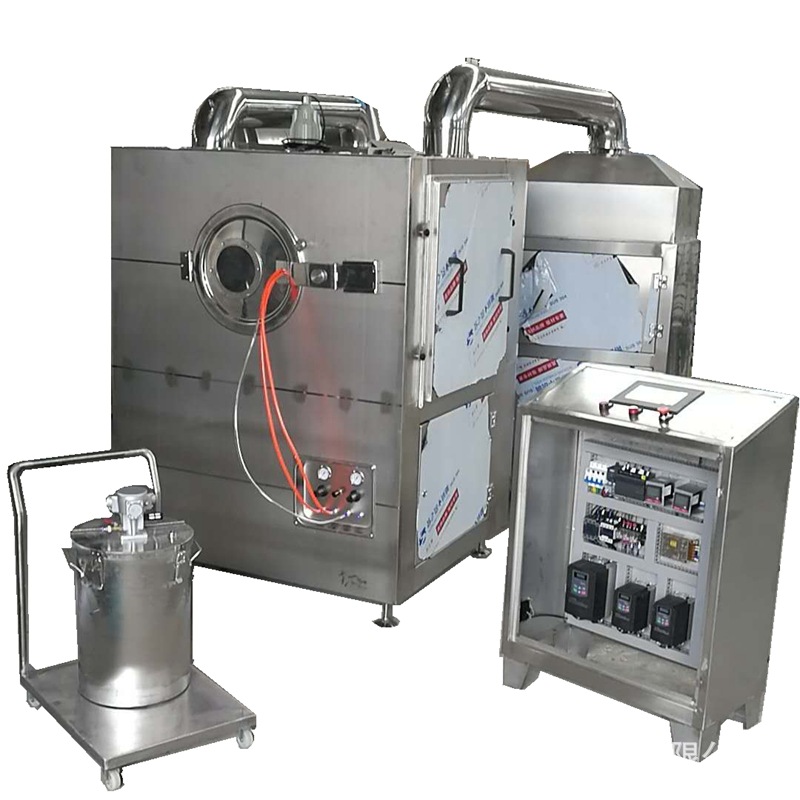

High Efficiency: The BG series coating machine is equipped with advanced coating technology and a reasonable structural design, which can greatly improve the coating efficiency. It can complete the coating process of a large number of products in a relatively short time, meeting the production needs of different scales.

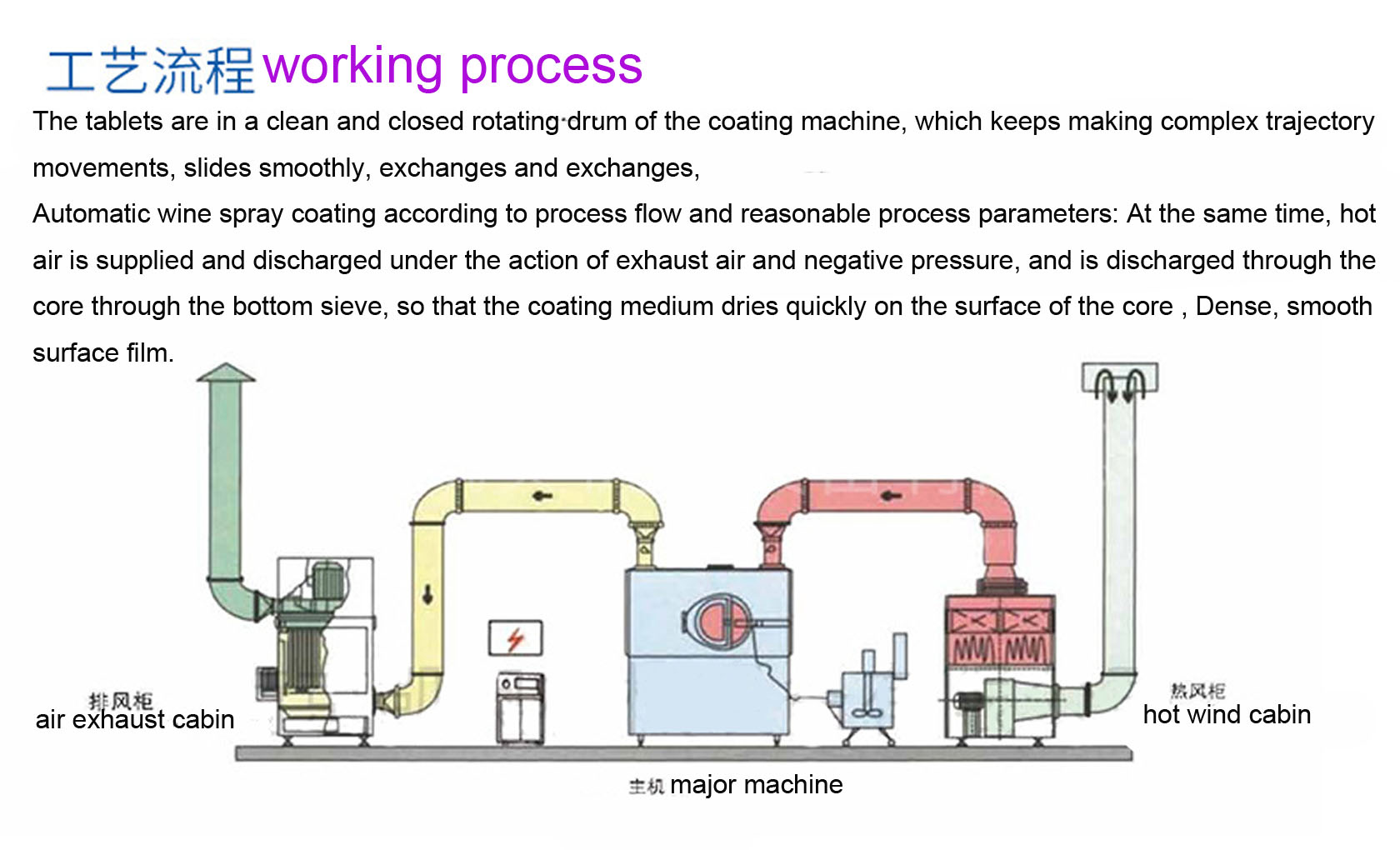

Uniform Coating: It adopts a unique spray system and drum structure to ensure that the coating material is evenly sprayed on the surface of the product. The rotation speed of the drum and the spraying amount of the coating material can be adjusted accurately, so that each product can get a uniform and smooth coating, improving the quality and appearance of the product.
Stable Performance: The machine is made of high-quality materials and advanced manufacturing processes, with a solid structure and reliable performance. It is equipped with a high-precision control system to monitor and adjust various parameters in real time during the coating process, ensuring the stability and repeatability of the coating effect.
Easy to Operate and Maintain: The BG series coating machine has a user-friendly operation interface, which is simple and intuitive, making it easy for operators to master. In addition, the machine's structure is designed for easy maintenance, with convenient access to each component for cleaning, inspection and repair, reducing downtime and maintenance costs.
Good Sealing and Sanitation: In order to meet the requirements of the food and pharmaceutical industries for hygiene, the coating machine has good sealing performance, which can prevent the entry of external pollutants and ensure the cleanliness of the coating environment. At the same time, the materials in contact with the product are all made of food-grade or pharmaceutical-grade materials, which meet relevant hygiene standards.
Model: BG-80 and other models are available to meet different production requirements. The BG-80 model is suitable for medium-sized production lines.
Production Capacity: It can process a certain amount of products per batch. For the BG-80 model, the typical batch capacity is [X] kilograms of tablets or granules, etc.
Coating Drum Size: The size of the coating drum is designed reasonably according to the production capacity. For example, the diameter of the BG-80 coating drum may be [X] millimeters, and the length is [X] millimeters, which can provide sufficient space for the products to tumble and be coated evenly.
Power Supply: The motor and electrical system of the BG series coating machine are generally suitable for 380V, 60Hz three-phase power supply, which can ensure the normal operation of the machine and provide sufficient power.
Equipment Material: The main body of the machine is made of 304 stainless steel, which has good corrosion resistance and durability, and is easy to clean and disinfect, meeting the requirements of different working environments.
In general, the BG series coating machine is a kind of advanced coating equipment with high efficiency, high quality and easy operation, which can provide strong support for improving product quality and production efficiency in related industries.
Parameters | BG-40 | BG-80 | BG-150 | BG-250 | BG-400 |
Maximum Capacity (kg) | 40 | 80 | 150 | 250 | 400 |
Drum Rotation Speed Adjustment Range (r/min) | 2 - 20 | 2 - 20 | 2 - 18 | 2 - 15 | 2 - 15 |
Overall Dimensions of the Main Machine (Length×Width×Height, mm) | 1080×900×2000 | 1210×1000×2100 | 1600×1260×2300 | 2000×1550×2550 | 2050×1680×2650 |
Coating Drum Diameter (mm) | φ820 | φ940 | φ1200 | φ1500 | φ1580 |
Main Machine Motor Power (kw) | 1.1 | 1.5 | 2.2 | 3 | 4 |
Hot Air Cabinet Motor Power (kw) | 0.75 | 1.1 | 1.5 | 3 | 3 |
Exhaust Cabinet Motor Power (kw) | 2.2 | 3.0 | 5.5 | 7.5 | 7.5 |
Exhaust Cabinet Air Delivery Volume (m³/h) | 2500 | 2700 | 3600 | 4200 | 5000 |
Hot Air Temperature Control Range (℃) | < 80 | < 80 | < 80 | < 80 | < 80 |
Power Supply | Three - phase five - wire, 12 kw, 380 V | Three - phase five - wire, 15 kw, 380 V | Three - phase five - wire, 18 kw, 380 V | Three - phase five - wire, 25 kw, 380 V | Three - phase five - wire, 32 kw, 380 V |
Gas Supply | Clean Compressed Air > 0.40 | Clean Compressed Air > 0.40 | Clean Compressed Air > 0.40 | Clean Compressed Air > 0.40 | Clean Compressed Air > 0.40 |
Compressed Air Consumption | 0.3 | 0.4 | 0.6 | 0.8 | 1.2 |
Steam Pressure | > 0.6 | > 0.6 | > 0.6 | > 0.6 | > 1.14 |
Steam Consumption (kg/h) | 40 | 60 | 80 | 110 | 130 |
Steam Pipe Diameter | G 1″ | G 1″ | G 1″ | G 1.2″ | G 1.2″ |
Insulated Drum Electric Heating Power (kw) | 1 | 2 | 2 | 4 | 4 |
