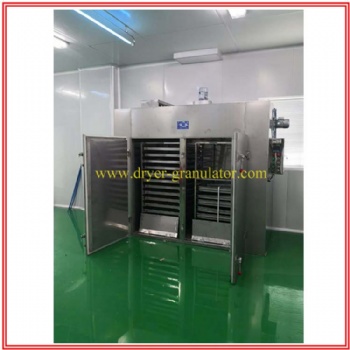

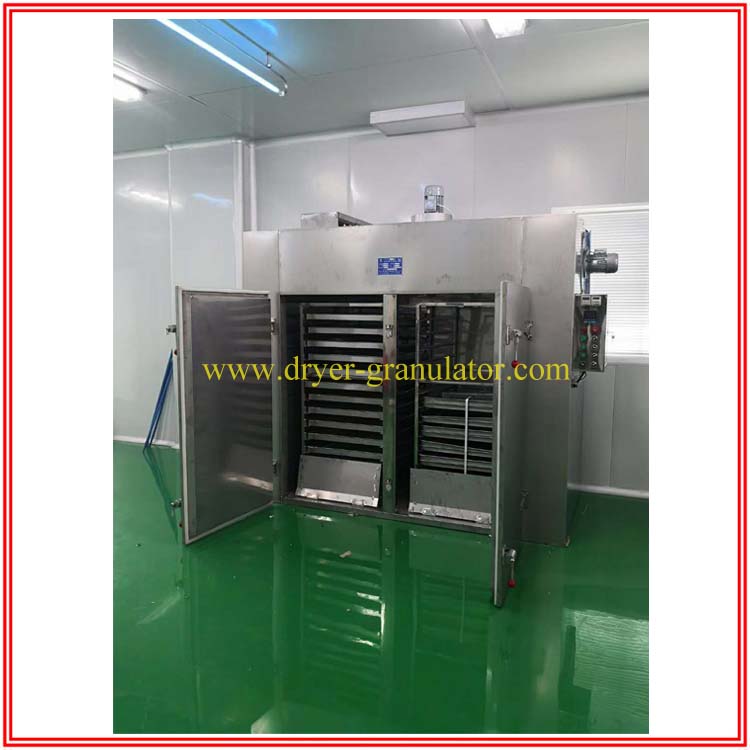

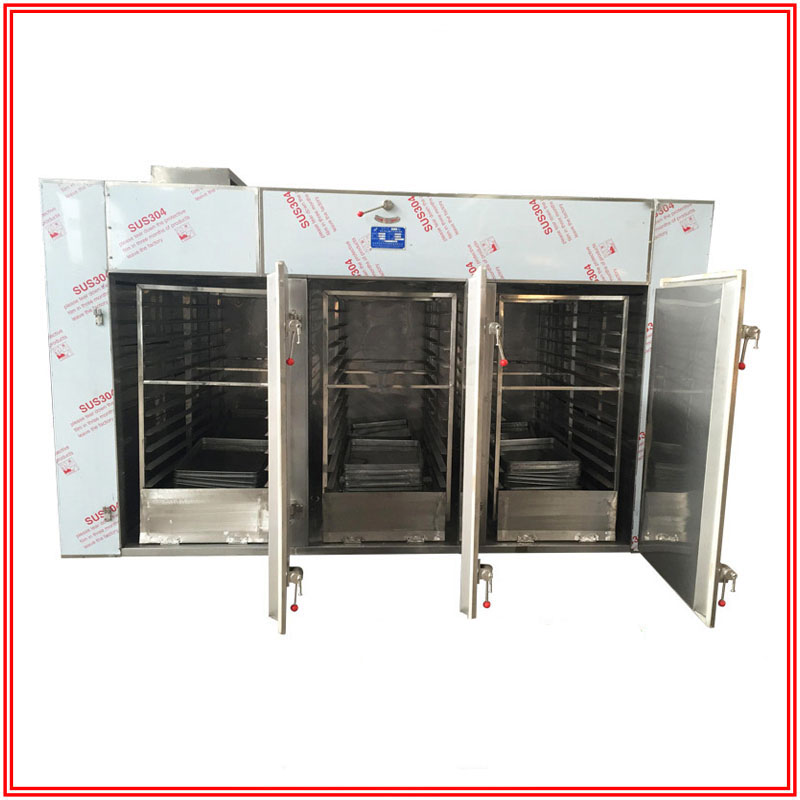

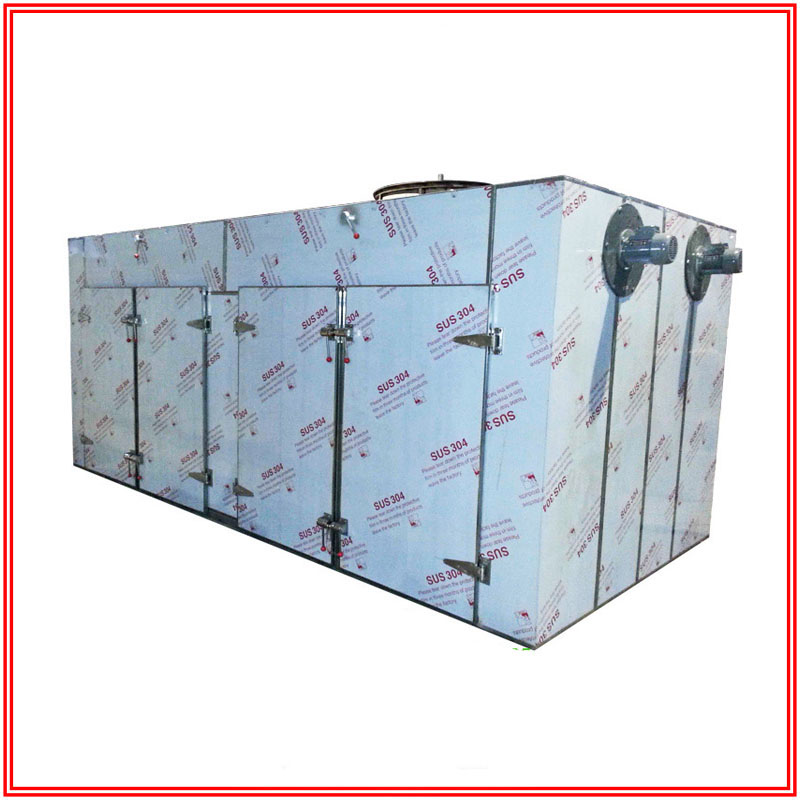

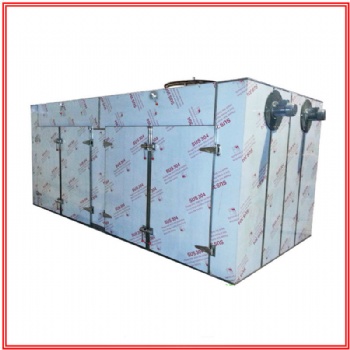

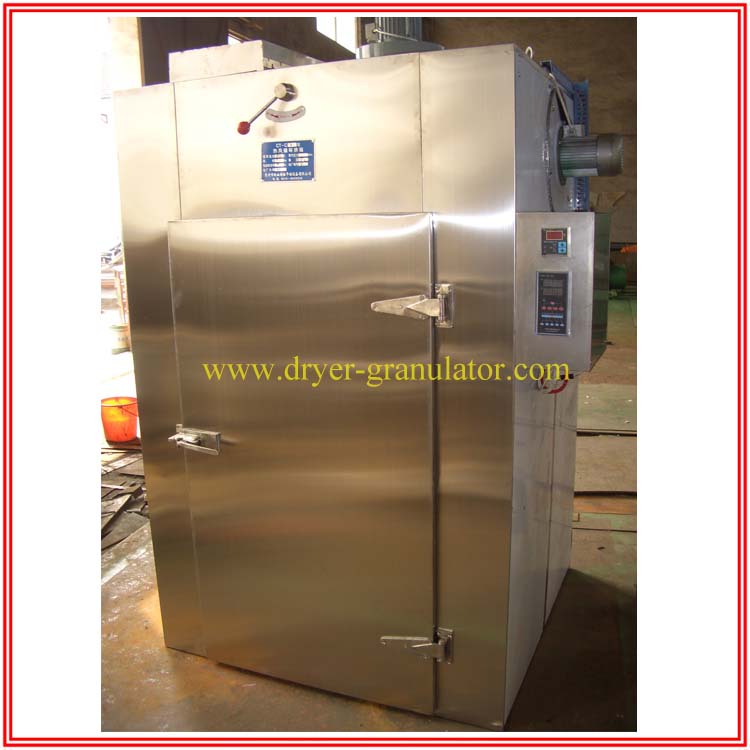

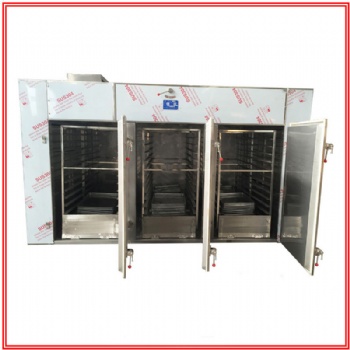

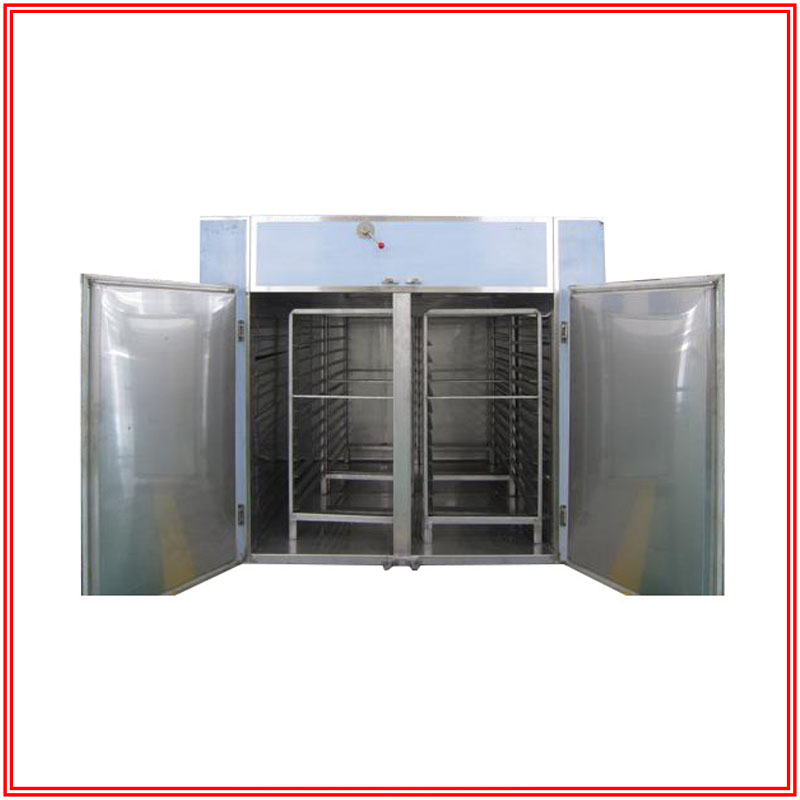

Hot air drying oven

The CT-C series hot air circulation oven is equipped with a low-noise, high-temperature-resistant axial flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to the current 35-45% , The thermal efficiency can reach 50%. The successful design of CT-C hot air circulation oven has made my country's hot air circulation oven reach the level of domestic and foreign ^. It saves a lot of energy for our country and improves the economic efficiency of enterprises. In 1990, the State Medical Administration issued an industry standard, and the unified model was RXH.

Schematic

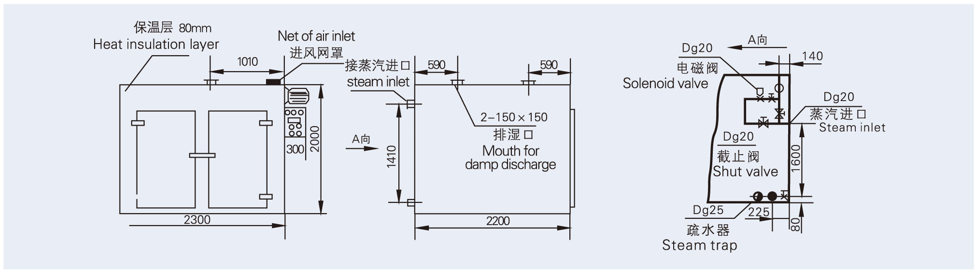

Schematic diagram of hot air circulation oven structure

◎The heating source has steam, electricity, far-infrared, and electric steam for users to choose;

◎Using temperature: steam heating 50～140oC, up to 150oC;

◎Electricity, far-infrared temperature 50～350oC;

◎Automatic control system and computer control system are available for users to choose;

◎The usual steam pressure is 0.02-0.8Mpa (0.2～8kg/m2);

◎ Equipped with electric heating, 15KW calculated according to type I, practical 5-8kw/h;

◎Special requirements shall be stated when ordering;

◎Non-standard oven prices are negotiable;

◎The operating temperature is greater than 140oC or less than 60oC, please indicate when ordering;

◎The size of the drying car and the baking tray is uniform and interchangeable;

◎Baking tray size: 460×640×45(mm).

Performance characteristics

  Most of the hot air circulates in the box, with high thermal efficiency and energy saving. Using the effect of forced ventilation, the box is equipped with an adjustable air distribution plate, the materials are dried uniformly, and the heat source can be steam, hot water, electricity, and far infrared, with a wide range of choices. The whole machine has low noise and balanced operation. Automatic temperature control, easy installation and maintenance. It has a wide range of applications and can dry various materials. It is a general-purpose drying equipment.

Schematic diagram
