The main purpose

         The unit is suitable for pharmaceutical, food, chemical and other industries. With multiple functions such as air cooling and no screen, this machine has an ideal effect for crushing and drying fibrous materials. Compared with other domestic models, the product temperature is low, the particle size is relatively uniform, and it can complete edible sugar, plastic powder, Crushing of heat-sensitive materials such as Chinese medicine and materials containing certain oiliness. Such as herb roots, stems, etc.

working principle

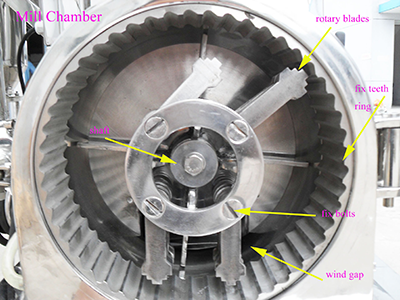

         The machine is composed of a hopper, a grading wheel, a crushing blade, a gear ring, a crushing motor, a discharge port, a fan blade, a collecting box, a dust collecting box and other parts. The material enters the crushing chamber from the hopper, and is crushed by the high-speed rotating blade. The distance between the grading wheel and the grading disc is adjusted to achieve the required fineness of the material. The high-speed rotating blades guide the materials that meet the requirements from the crushing chamber to the cyclone receiver through negative pressure, and the materials that do not meet the requirements continue to be crushed in the crushing chamber. The dust is filtered and recovered through a cloth bag. The unit is designed according to the "GMP" standard, with simple structure, convenient operation and cleaning, and low noise. The dust box of the equipment can effectively collect the dust generated during crushing.
