This machine is equipped with rotating centrifugal disk, blower, and pneumatic spray gun to make wet particles into beautiful pellets. Put the wet particles made in the previous process into the rotating centrifugal disk, start the blower, and then start the rotating centrifugal disk, so that the wet particles are subjected to the buoyancy of the annular gap air, the centrifugal force of rotation, and their own gravity, and move in the shape of a circumferential rope strand. The formation of balls with extremely high sphericity.

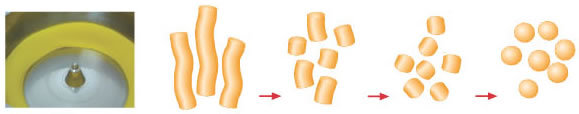

      This system is to make suitable soft materials by mixing powder materials and binders, and then extrude the soft materials into columnar particles and put them into a spherical shot blasting machine to make spherical particles with extremely high sphericity. The equipment dries off the excess water and obtains the required spherical particles.

System composition: mixing + preliminary granulation + rounding + drying + sieving = finished product

Mixing: CH trough mixer or other mixers (mixing type); granulation; ZL rotary extrusion granulator or YK swing granulator (granulation type); round; QZL round granulator; drying: GFG high-efficiency rattan dryer, FG boiling dryer, oven or others; Screening: ZS vibrating screen or others

Put the wet particles made in the previous process into the rotating centrifugal disc, so that the wet particles are subjected to the buoyancy of annulus air, rotating centrifugal force, and their own gravity, and move in the shape of a ring strand, and spray them to the moving material layer from a reasonable direction through a multi-fluid spray gun. Into the formula liquid, the pellets with high sphericity are formed. The principle is similar to that of a rotating fluidized bed.

Typical applications: omeprazole pellets, aspirin pellets, feed enzyme pellets, sodium sulfate pellets, compound paracetamol pellets, catalysts, VB2 film pellets

Features:

   ◆The blower can be equipped with motor frequency conversion first, which makes the whole grain faster and the finished product more beautiful

   ◆The selection turntable adopts two-speed motor to maximize the beauty of the product

   ◆Materials are operated in airtight containers, no dust flying, safe operation
