Basic Info.

Model NO.

WLDH-1

Certification

CE, ISO, GOST, SONCAP, CCC, API

Application Area

Chemical

Layout Type

Horizontal

Mixing Drum Shape

Drum

Operating type

Cycle Operating

Condition

New

Name

Ribbon Mixer

Other Name

Trough Mixer

Material

Stainless Steel

Industry of Application

Checmial or Pharma Powder

Use

Powder Mixing

Power

220V 380V 415V

Certificate

CE

HS

84798200

Speed

Rotary Speed Viable

Add Liquid

Available

Transport Package

Wooden Case

Specification

CE SGS SONCAP

Trademark

ck

Origin

China

HS Code

8479820090

Production Capacity

200sets Per Month

Product Description

Introduction:

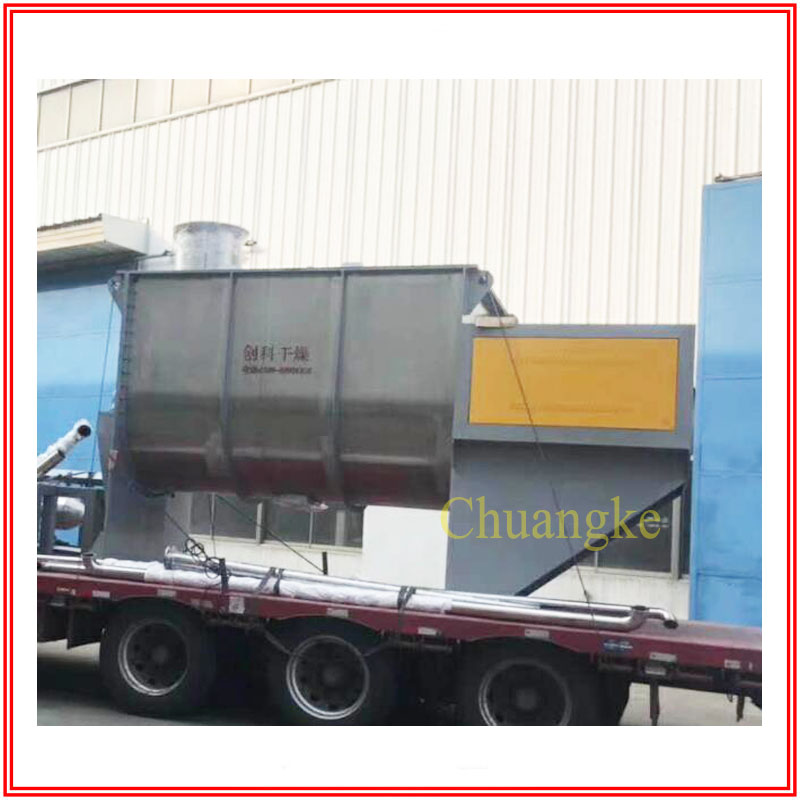

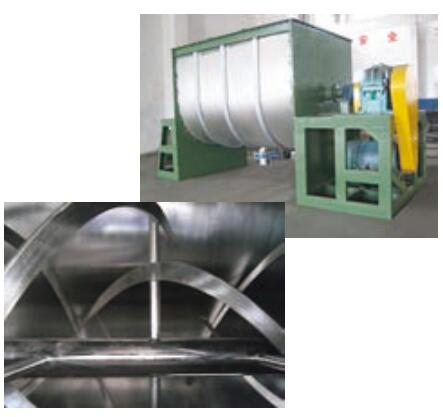

WLDH series horizontal screw belt mixer is composed of vessel, spiral mixing blades and transmission parts; Spiral blades are generally made into double or triple layers of outer spirals to collect materials from both sides to the center, and inner spirals transport materials from the center to both sides to form convection mixing. The volume can be made round so that the jacket can be used for reaction and drying.

Features:
Large loading coefficient and small equipment footprint;
Under the feasibility factor, the mixing effect of the horizontal screw belt mixer is not affected by the size and density of the particles, and it also has a good mixing effect for sticky materials.
The smooth mixing process reduces the damage to fragile materials, and the installation of a throwing knife structure also plays a crushing role.
The horizontal construction has a low body height for easy installation.
In the stirring structure, the forward and reverse rotating screws are mounted on the same horizontal shaft, creating a low-power mixing environment.
The horizontal screw belt mixer is mainly used for the production of putty powder, and can also be used as an entry-level insulation mortar mixer

Working principle:

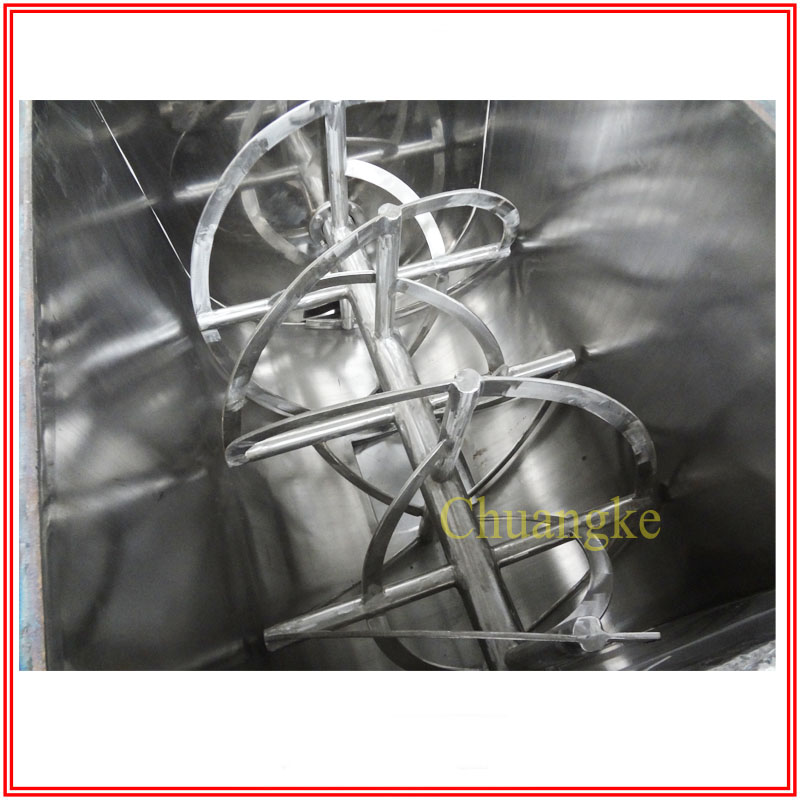

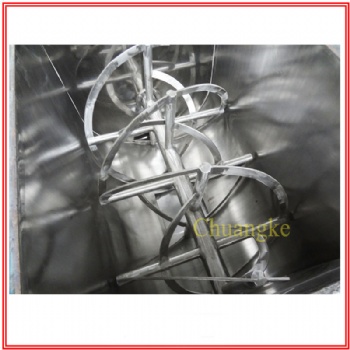

The model is composed of vessel, spiral mixing blades and transmission parts: spiral blades are generally made into double or triple layers, the outer spiral collects the materials from both sides to the center, and the inner spiral transports the materials from both sides of the center to form convection mixing.
